Stripe Gateway Setup - Complete Guide

This comprehensive guide will walk you through setting up Stripe payments for your application, including obtaining API keys and configuring webhooks.

Prerequisites

• Stripe Account
• Access to Stripe Dashboard
• Your application ready for integration

Step 1: Get API Keys

1. Navigate to Stripe Dashboard

   • Go to https://dashboard.stripe.com
   • Log in to your Stripe account

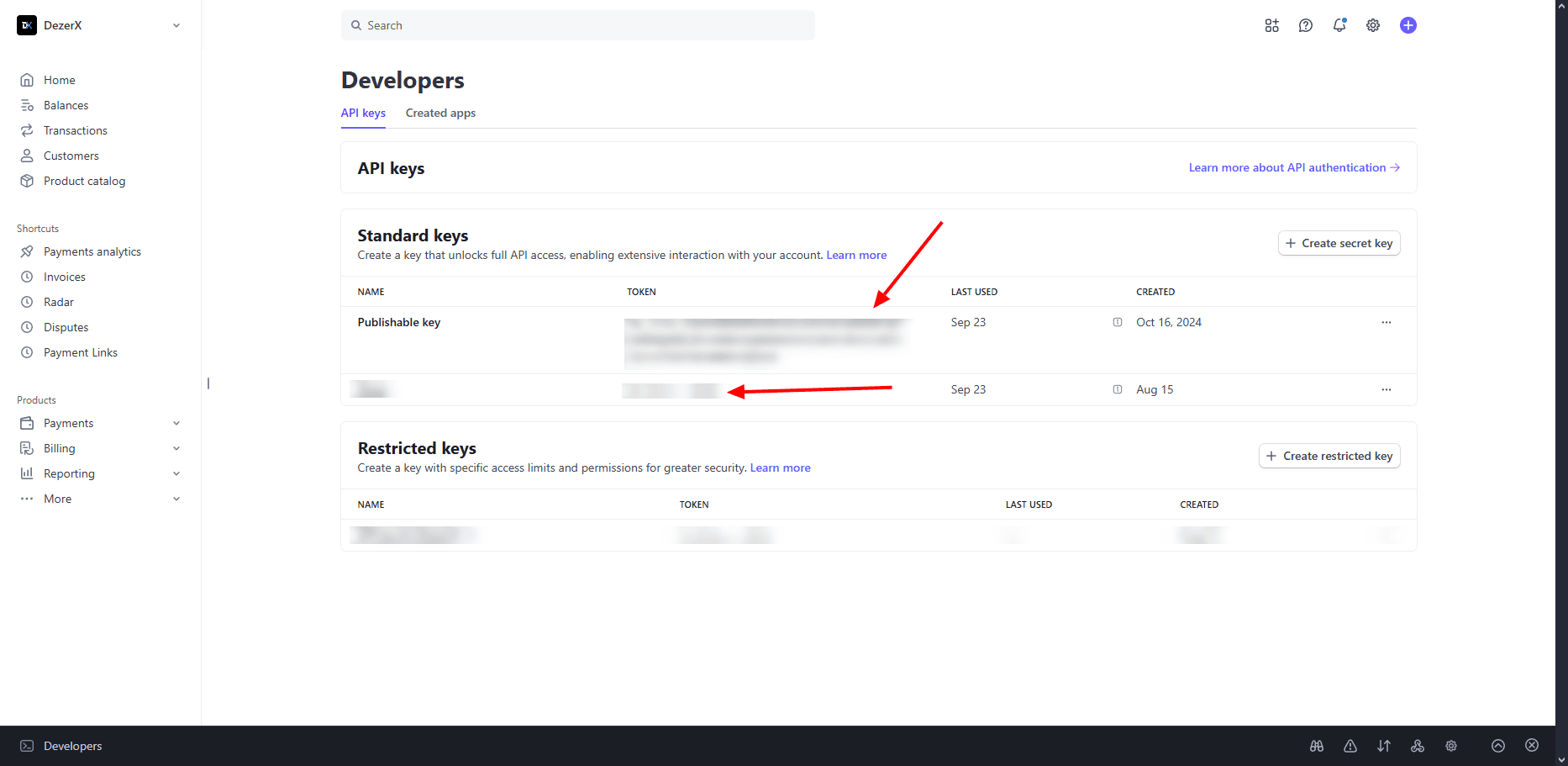

2. Access API Keys

   • In the left sidebar, click on "Developers"
   • Click on "API keys" to view your keys
   • Copy both your Publishable key and Secret key

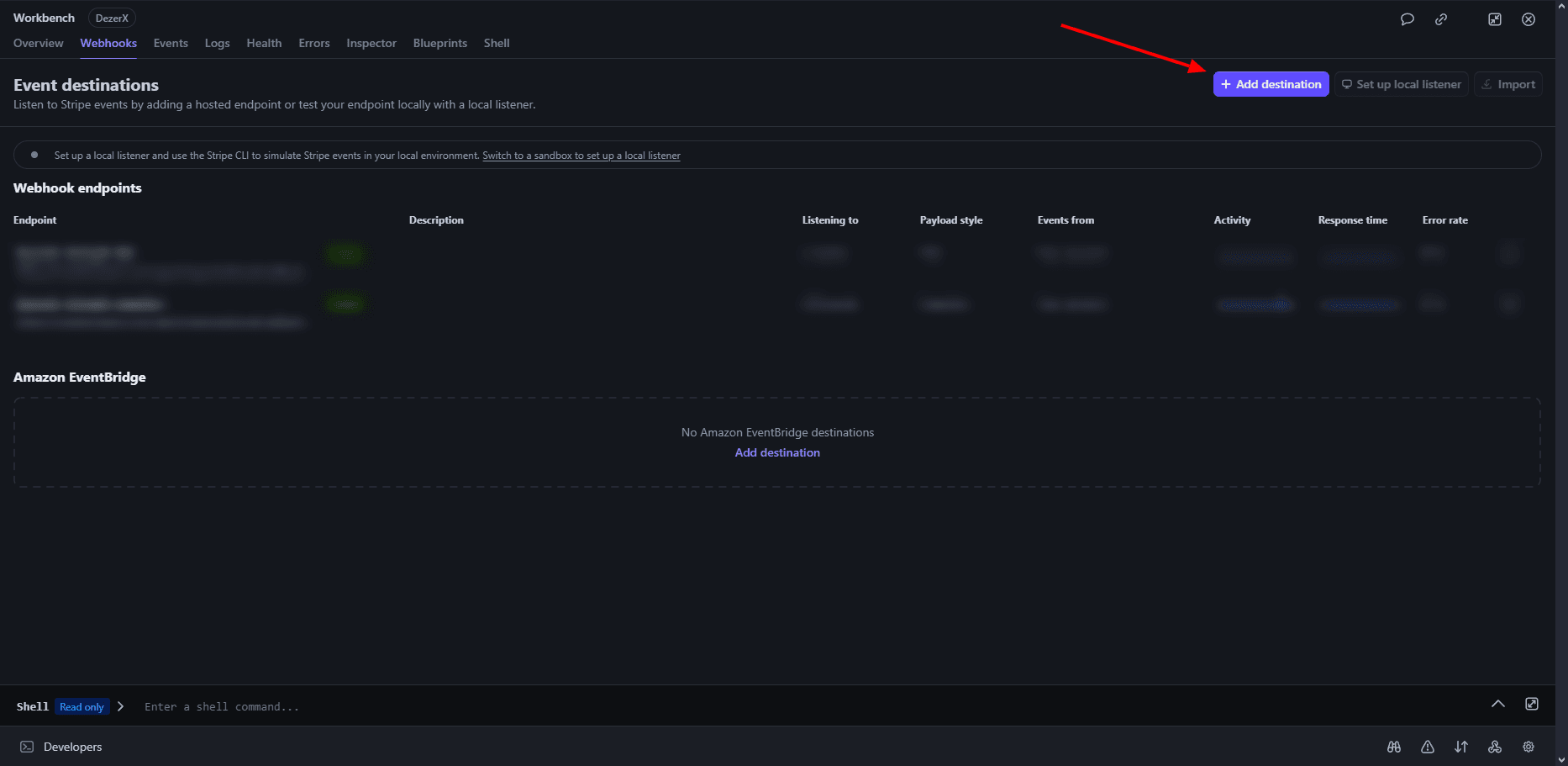

Step 2: Access Webhook Workbench

1. Navigate to Webhooks

   • In the left sidebar, click on "Developers"
   • Click on "Webhooks" to access the webhook configuration

2. Add Webhook Endpoint

   • Click "Add destination" to create a new webhook
   • This will open the webhook workbench

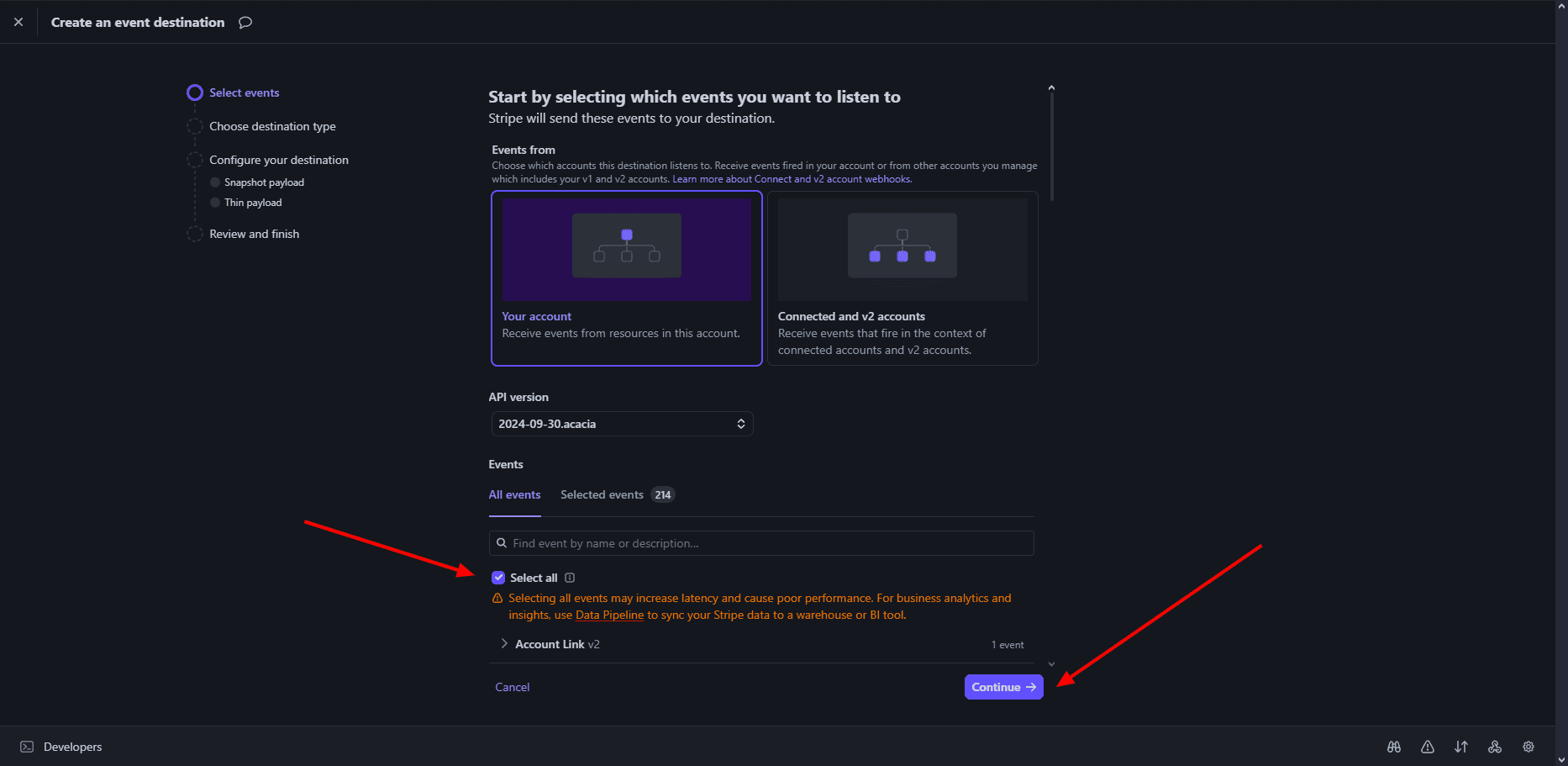

Step 3: Select Events

1. Choose Events to Listen For
   • Select "All events" to monitor all Stripe events
   • This ensures comprehensive payment monitoring
   • Click "Continue" to proceed

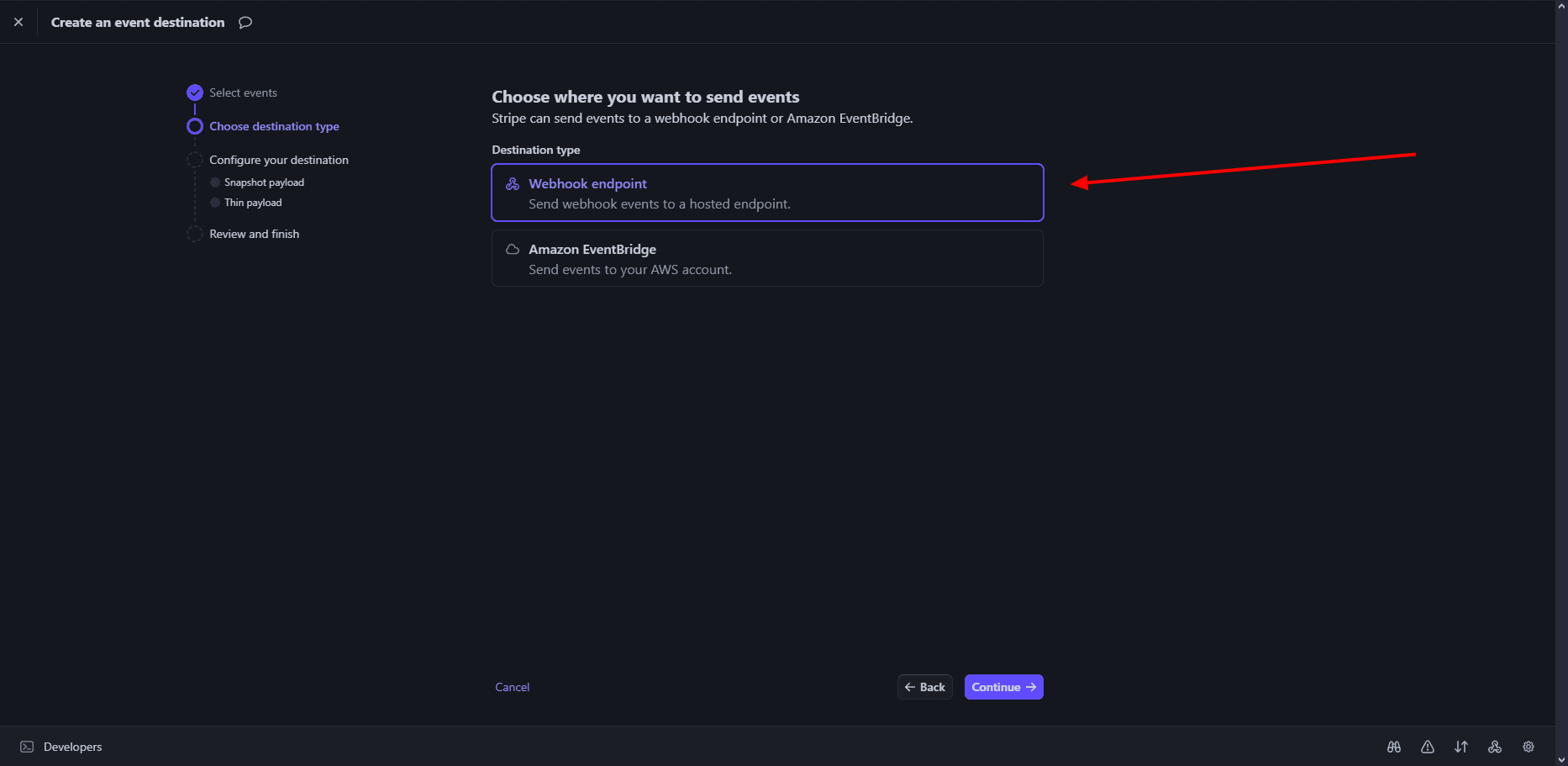

Step 4: Configure Webhook Endpoint

1. Set Up Endpoint URL
   • Click on "Webhook endpoint" section
   • This is where you'll configure where to send events
   • Click "Continue" to proceed to the next step

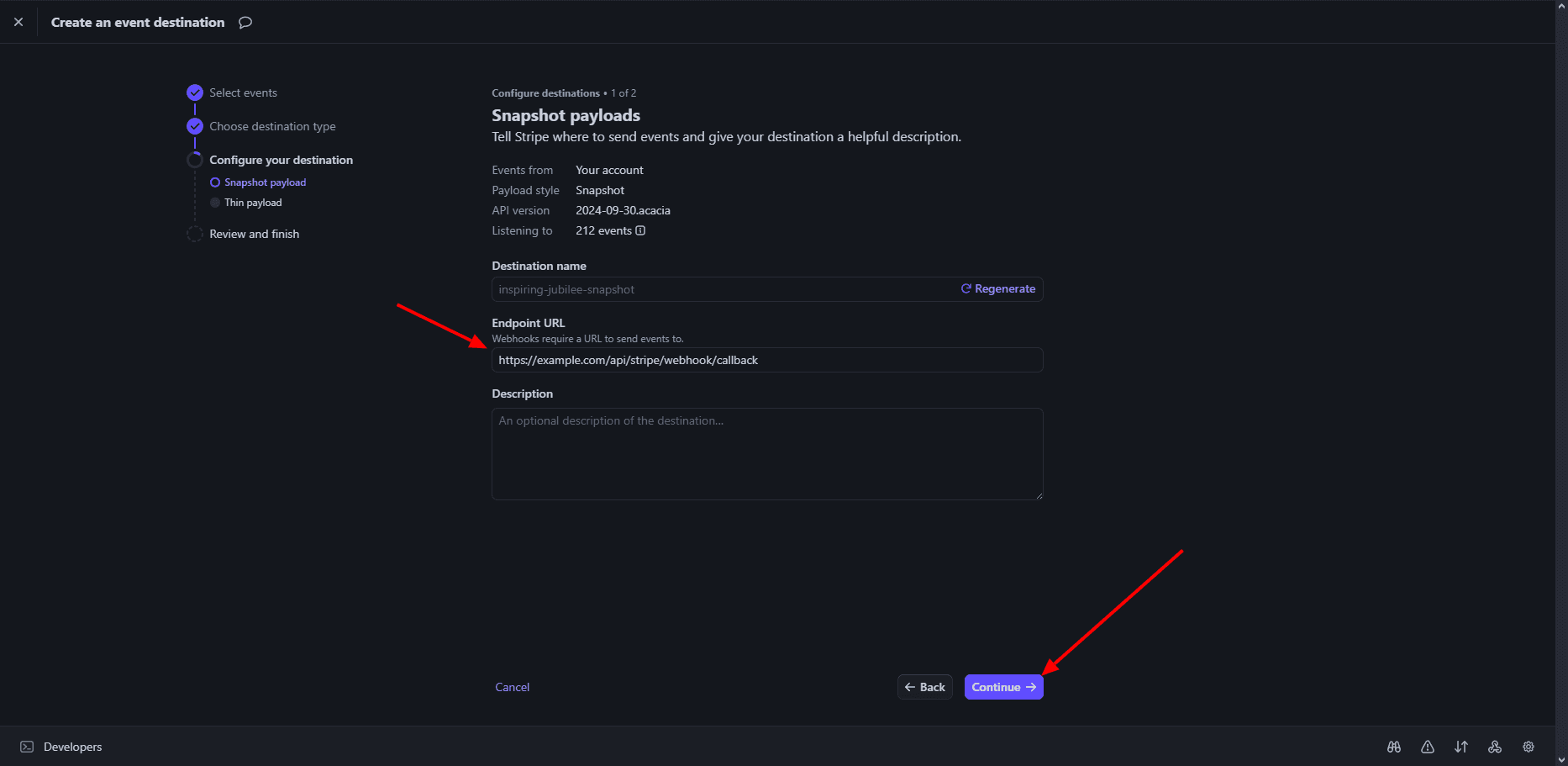

Step 5: Configure Destination

1. Set Destination Name

   • Enter a descriptive name for your webhook (e.g., "My Store Webhook")

2. Set Endpoint URL

   • Important: The endpoint URL must end with /api/stripe/webhook/callback
   • Example: https://yourdomain.com/api/stripe/webhook/callback
   • This exact path is required for proper webhook handling

3. Complete Setup

   • Review your configuration
   • Click "Continue" to create the webhook

Step 6: Webhook Created Successfully

1. Webhook Details
   • After creating the webhook, you'll see the webhook details
   • Copy the webhook endpoint URL for your application

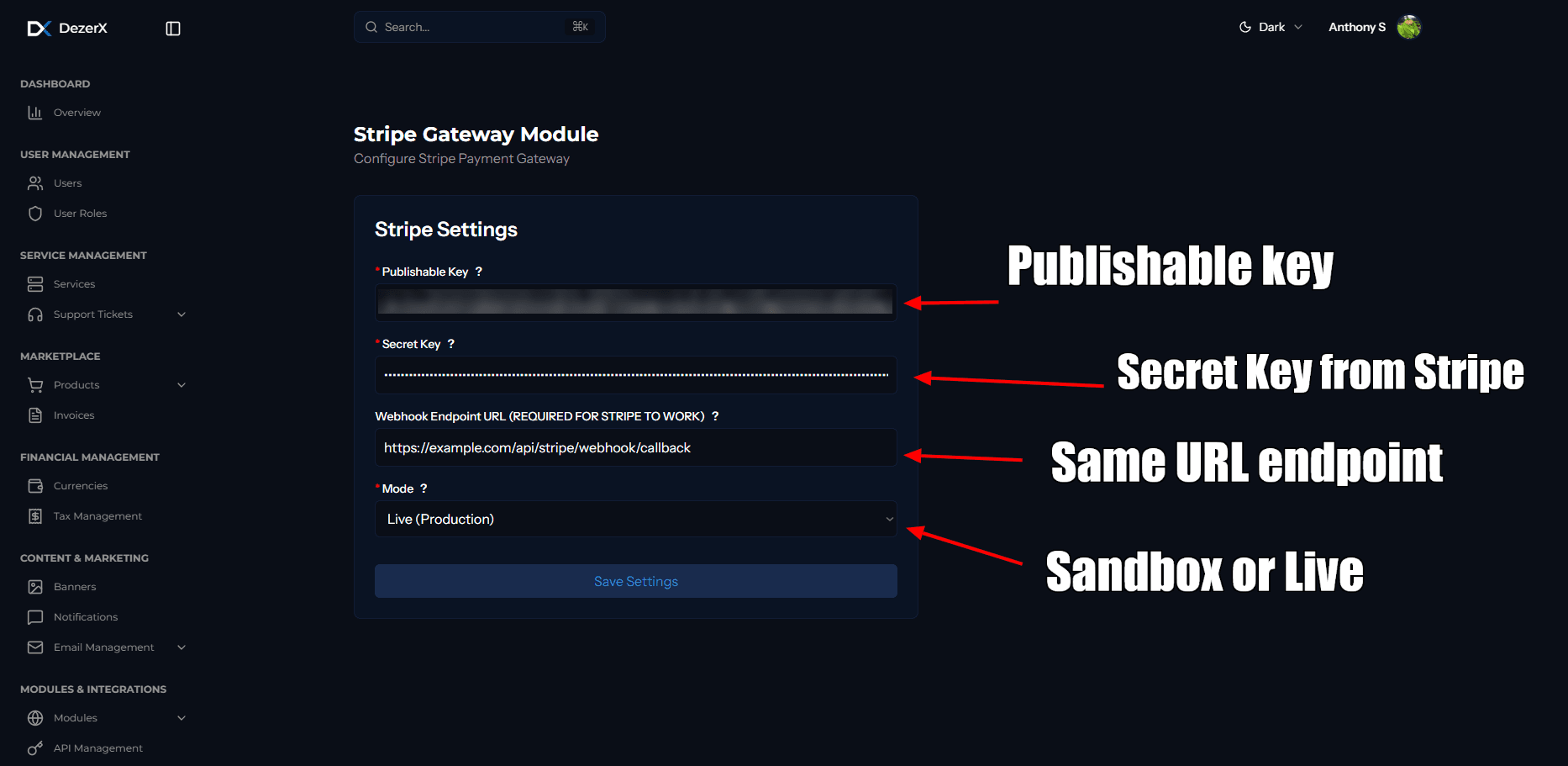

Step 7: Adding it to Spartan

1. Now to enable Stripe in Spartan
   • Login and head over to admin overview
   • Click on Modules inside the sidebar, and head over to gateway tab. and find Stripe module.
   • Over here, do as the image say then press Save Settings.

Troubleshooting

Common Issues

1. Invalid Credentials

   • Verify Publishable Key and Secret Key are correct
   • Ensure you're using the right environment (test/live)

2. Webhook Not Receiving Events

   • Check webhook URL is accessible
   • Verify webhook endpoint URL ends with /api/stripe/webhook/callback
   • Verify webhook is enabled and configured correctly
   • Check your server logs for errors

3. Payment Failures

   • Verify your Stripe account is in good standing
   • Check if the payment amount is within limits
   • Ensure all required fields are provided

Support Resources

• Stripe Documentation
• Stripe API Reference
• Stripe Webhook Documentation

Your Stripe gateway is now configured and ready for payment processing!
